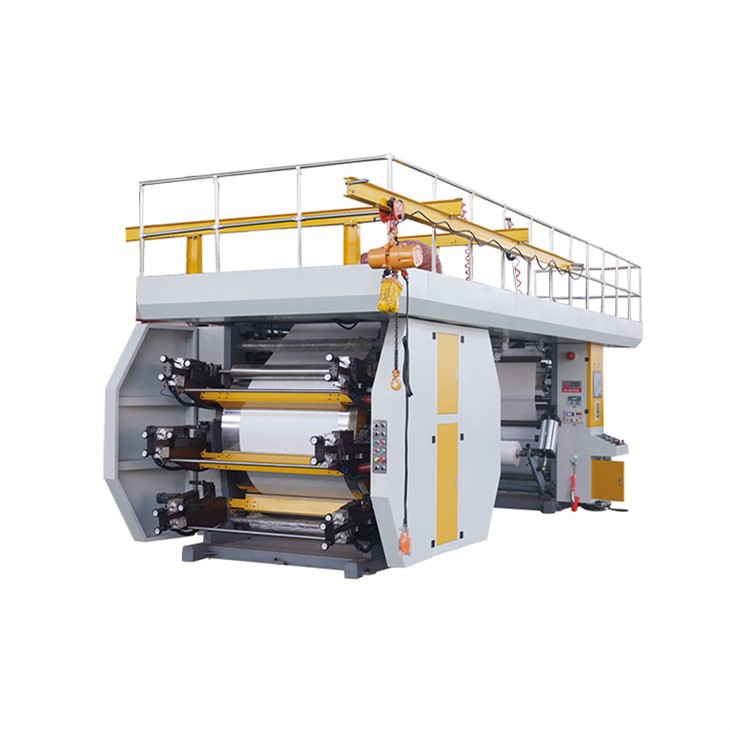

Paper CI Flexo Printing Machine

Paper( 20-400gsm)

Plastic film( 20microns-80microns)

Non woven fabric( 20-150gsm)

PP woven(50-180gsm)

1. The unwinding unit adopts a single station or dual station structure; 3 "inflatable shaft loading method; Automatic correction and constant tension control; Equipped with a material change warning and paper breakage shutdown device.
2. The main motor adopts frequency conversion control, and the entire machine is driven by high-precision synchronous belt transmission.
3. The unwinding traction adopts double rubber rollers for pressing and feeding paper, and the pressure is controlled by pneumatic components; Using taper control technology to control the tension and ensure the accuracy of post printing.
4. The printing unit adopts ceramic mesh rollers for ink transfer, single blade reverse or two-way closed scraping method, and the ink pump automatically supplies ink; Hydraulic clutch for net roller and plate roller, automatic separation when stopped; The independent motor drives the mesh roller to prevent ink from solidifying and blocking the mesh holes on the surface of the mesh roller.
5. The size of the winding pressure is controlled by pneumatic components; Can be equipped with a still screen color detection system.
6. The material receiving unit can adopt a single station or dual station structure; 3 "inflatable shaft loading method; Using magnetic powder tension controller, equipped with closed-loop tension control and paper cutting shutdown device.
7. Independent drying system: Built in infrared wave heating and drying (temperature adjustable)

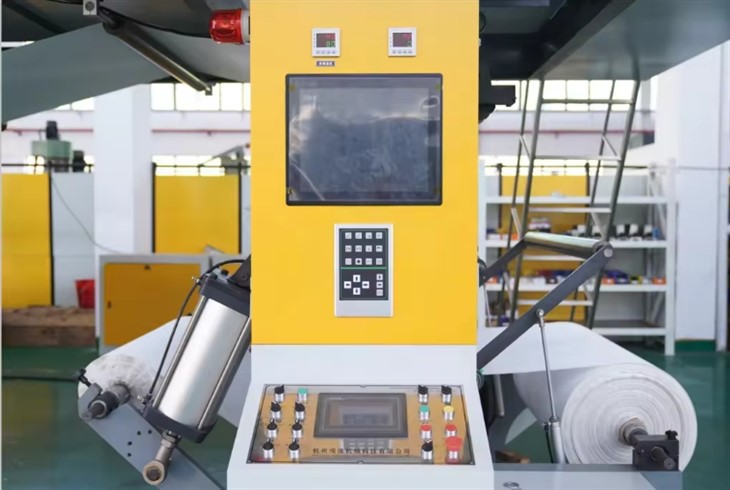

8. The entire machine is centrally controlled by a PLC system; Input and display the working status of the entire machine on the touch screen; It can achieve automatic meter counting and multi-point speed regulation.
9. Hydraulic automatic cutting, pneumatic/hydraulic feeding.
10. The unwinding adopts a high-performance correction system to ensure the linear stability of the substrate operation process and the uniformity of the end face of the rolled product.
11. The central imprinting drum and central gear are made of high-precision materials.

Single Unwind system --Auto tension control --Auto EPC Web guide--Printing Unit--Dry system after printing--Auto tension control-- Single Rewind system
