Name: China High Speed Ci Flexo Printing Machine Manufacturers Suppliers Factory - Good Price - Xianghuai Machinery Technology
Brand: Xianghuai
SKU: 232957435

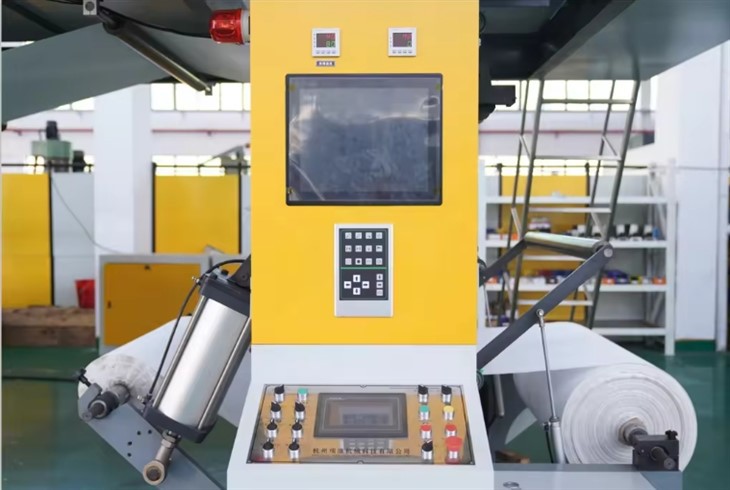

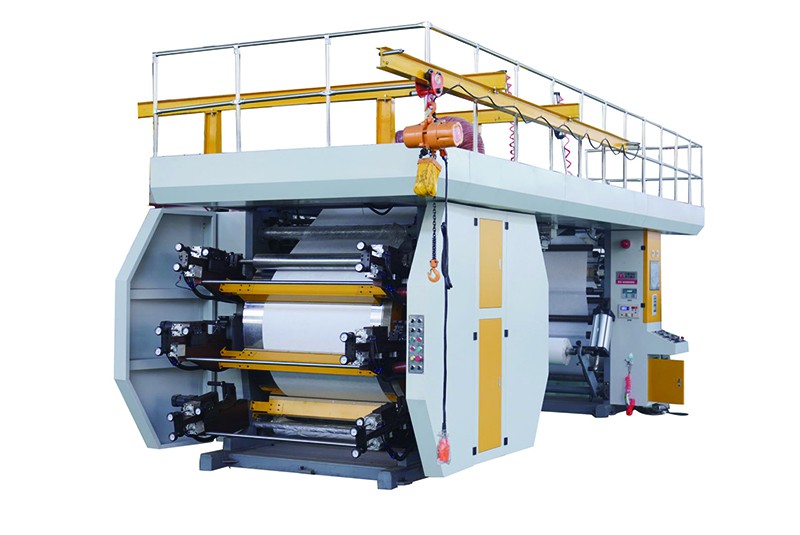

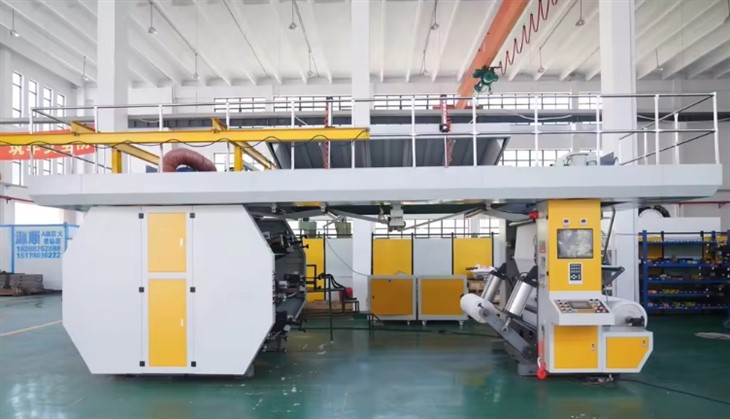

High Speed CI Flexo Printing Machine

1001

Applicable material

Kraft paper: 40 ~ 350g/m2, single-sided coated paper: 30 ~ 350g/m2, copy paper: 15 ~ 350g/m2, firecrackers and paper: 40 ~ 350g/m2, silicone paper: 50 ~ 350g/m2, coated paper: 30 ~ 350g/m2, dust-free paper: 25 ~ 350g/m2, release paper: 40 ~ 350g/m2composite paper, 30 ~ 350g/m2

Non woven: 15-120 grams, woven: 15-500 g, PVC: 10 ~ 120μm, OPP: 10 ~ 100μm, BOPP: 10 ~ 100μm, PE: 15 ~ 150μm, NY: 10 ~ 120μm, PET: 10 ~ 100μm, CPP: 10 ~ 100μm

Basic parameters

Model	XHCI-A Series
Machine color	2/4/6/8 color
Max.Web Width	600mm-2500mm
Max.Printing Width	560mm-2460mm
Printing Material	Paper, Non Woven, BOPP, HDPE, LDPE, etc
Max.Machine Speed	160m/min
Max.Printing Speed	150m/min
Max.Unwind&Rewind dia	1200mm
Printing repeat	320mm-800mm
Printing plate thickness	plate 1.7mm or 2.28mm (As customer requirement)

Main Features

1.Method: Central impression for better color registeration. With the central impression configuration, the printed material is supported by the cylinder, and greatly improving color registeration, especially with extensible material.

2.Structure: Wherever possible,parts are communized for availability and wear-resisting design.

3.Dryer: Hot wind dryer,automatic temperature controller, and separated heat source.

4.Doctor blade: open type assembly for high-speed printing. (chamber doctor blade for opetion)

5.Transmission: Hard gear surface, high precision Decelerate Motor, and encoder buttons are placed on both control chassis and body for operations convenience.

6.Rewind: Micro Decelerate Motor, drive Magnetic Powder and Cluth, with PLC control tension stability.

Production technology

Single Unwind system --Auto tension control --Auto EPC Web guide--Printing Unit--Dry system after printing--Auto tension control-- Single Rewind system

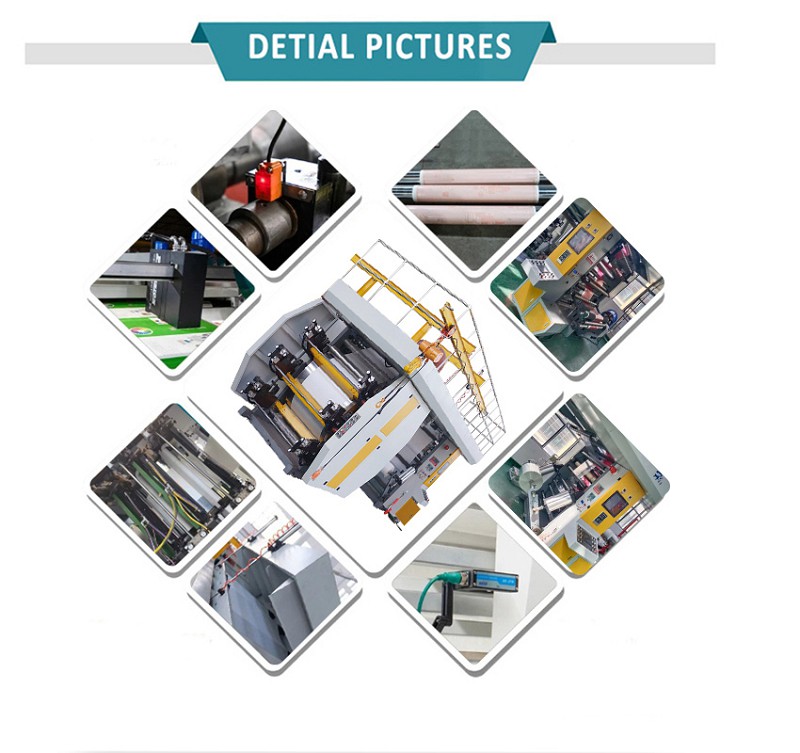

Machine details pictures

2001

001

About XIANGHUAI

CERTIFICATION001

shipment001

SERVICE001

FAQ

Q: Are we manufactory of trade company?

A: We are factory has big workshop space and long history.

Q: Can your products be customized?

A: Almost all of our machines can be customized,including the size, color,logo, package and so on.

Q: I need a quotation/How much is your price?

A: Please tell us your materials, width of your material, how many colors do you need.
Then we will know which machine is suitable for your and suggest the right machine for you.

Q: What's your delivery time?

A: Usually finish the production within 30 workdays(for normal stack type machine) and 90~120 workdays(for CI type machine) after your 30% advanced payment.
Actually need to check according our stock & production plan.

Q: How to get machine's price?

A: Please provide follows informations:
(1) How many colors you need to print?
(2)Material width and effective print width.
(3)What material to print?
(4)The photos of printing sample quality.

Q: How long is your machine's warranty period?

A: All our machine have one year guarantee, starting from finished installation.

Q: How could we do if the parts broken within warranty?

A: We would express the free replacement parts during the warranty date.
